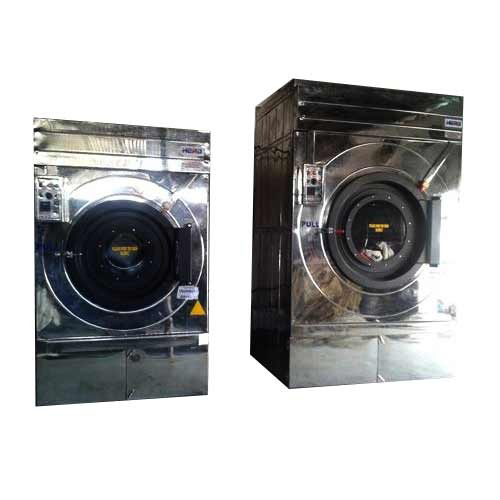

Industrial Tumbler Dryer
Product Code : HDM - 15
Brand Name : HERO DYEING MACHINE
We are an eminent name in the market as leading manufacturer, exporter and supplier of high performing Industrial Tumbler Dryer that is extensively used in clothing mills, textile and garment industries for drying clothes. The offered dryer is manufactured using superior quality raw material under the guidance of our adept professionals. Provided dryer is tested by our quality analysts to ensure its functionality. Further, it is available in different specifications to meet the desired needs of our clients. This Industrial Tumbler Dryer can be purchased from us at industry-leading prices.
Features:
- The advantage of this machine is that consumption of steam is very low. Steam pressure required 8 kgs
- Tube heated by steam blower
- Loading and unloading rollers are driven by D.C. Electric motors with control panel for adjustment of the thickness of fabric
- During the process, the fabric takes the shape of a bloom and there is no possibility of any folding or twisting of fabric
- The operation of the machine is very simple and even untrained operator can work the machine. Technical Specifications
| Model
Designator | No. of Tubes | Nom Capacity T | Power | Dimension |
| L | W | H |
|
|
| Kg/Hr | Lb/Hr | (Kw) | (Hp) | (MM) | (in) | (MM) | (in) | (MM) | (in) |
| VTD-2T | 2 | 120-150 | 264-369 | 4.5 | 6 | 3350 | 132 | 3250 | 128 | 4521 | 178 |
| VTD-4T | 4 | 240-300 | 528-796 | 7.5 | 10 | 3350 | 132 | 4800 | 189 | 4521 | 178 |
| VTD-6T | 6 | 360-450 | 792-1188 | 11.25 | 15 | 3350 | 132 | 6300 | 248 | 4521 | 178 |
| VTD-8T | 8 | 480-600 | 1056-1584 | 14.6 | 19.5 | 3350 | 132 | 7850 | 309 | 4521 | 178 |
