Yarn Dyeing Machine.

About Yarn Dyeing Machine.

We are the note-worthy manufacturer, exporter and supplier of excellent quality Yarn Dyeing Machine. It is extensively used in garment and textile industries for dyeing all types of yarns and fibers. By making use of quality-tested raw material, this machine is manufactured at our hi-tech manufacturing unit as per set international quality standards. Further, our offered machine is available in different technical specifications to meet the diverse requirements of the clients. Our offered Yarn Dyeing Machine can be purchased at reasonable prices from us.

Features:

• Non-interrupted performance

• Excellent durability

• Robust design

• Low maintenance

Process:

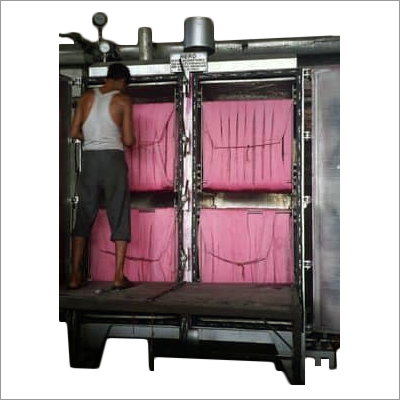

Presenting our range of most popular Hank Dyeing Machine, these machines are designed to have liquor flow parallel to the yarn and they work with low liquor ratios to save substantially in consumption of thermal energy ,water and chemicals.The material to be dyed in hanks is loaded on the sticks ,generally two sticks are used one at the top and other at the bottom. The bottom stick is used to avoid the yarn entanglement during the liquor flow. The carriers are loaded with the sticks having hanks ,the sticks are supported into slots made in the body of the carrier.

The loaded carriers are then put into the dyeing machine and door is closed. In a second variant of the machine , the machine is open at the top and career is loaded from the top , which ,a rubber gasket is provided around the periphery on which the machine career rest, and vessel is sealed by the weight of the career and material, thus making closed circuit. The liquor circulation and flow remains the same as in ordinary cabinet machine.

The dye liquor in these machines moves while the material remains stationary. The flow direction is reversed frequently to ensure level dyeing.

A yarn dyeing machine consists of following main components:

• Main dyeing vessel made of SS

• Carriers for loading of hanks with SS sticks for loading of hanks.

• An internal axial pump or an external pump for liquor circulation.

• An indirect heating system(with internal or external heat exchanger)

• An addition tank with injector pump

• Preparation tank

• An internal or external sampling device

Optimal Adaptability for All Yarn Types

Engineered to handle cotton, polyester, blends, and both natural and synthetic yarns, this machine accommodates cones, cylinders, and hanks, making it a versatile solution for various yarn forms. The adjustable liquor ratio and customizable chamber options ensure precise dyeing across a wide range of batch sizes and material types, supporting industries with diverse requirements.


Advanced Automation and Efficient Operation

With a touch screen HMI and PLC automatic control, users can easily program speed, monitor processes, and adjust parameters for optimal results. Automatic systems for water, temperature, and pH management, combined with integrated quick drainage, streamline operations and minimize resource consumption. This focus on automation and efficiency supports both productivity and sustainability goals.


Comprehensive Safety and After-Sales Support

Built-in safety features such as over-temperature and overpressure protection safeguard both operators and the equipment. The machine comes with one year of warranty and on-site support, alongside available installation services, ensuring a smooth setup and reliable post-purchase assistance. Its robust stainless steel construction enhances durability, offering peace of mind to users.
