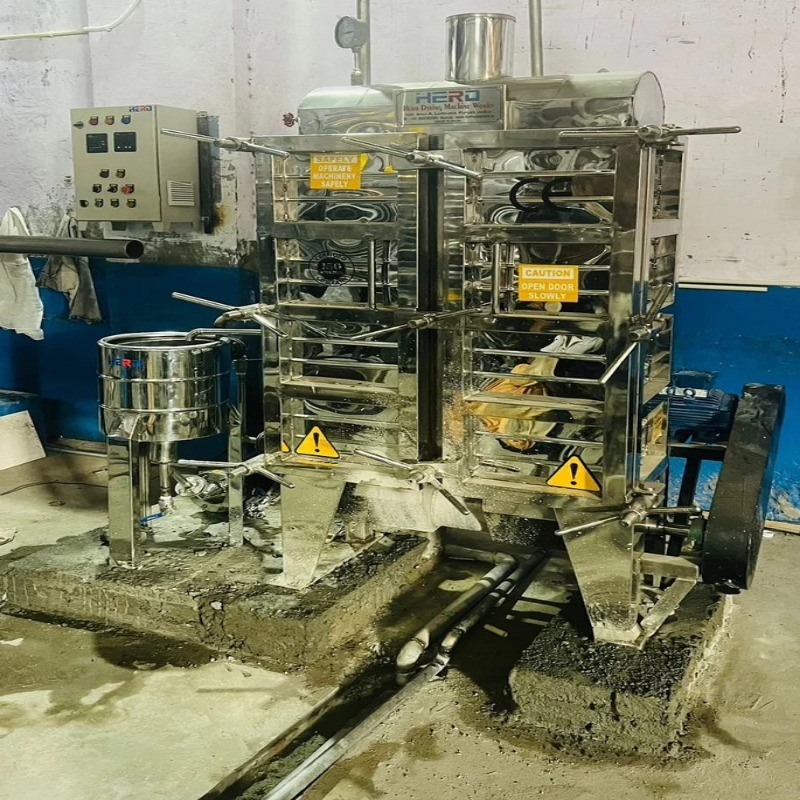

Hank Dyeing Machine

About Hank Dyeing Machine

Presenting our range of most popular Hank Dyeing Machine, these machines are designed to have liquor flow parallel to the yarn and they work with low liquor ratios to save substantially in consumption of thermal energy ,water and chemicals.The material to be dyed in hanks is loaded on the sticks ,generally two sticks are used one at the top and other at the bottom. The bottom stick is used to avoid the yarn entanglement during the liquor flow. The carriers are loaded with the sticks having hanks ,the sticks are supported into slots made in the body of the carrier.
The loaded carriers are then put into the dyeing machine and door is closed. In a second variant of the machine , the machine is open at the top and career is loaded from the top , which ,a rubber gasket is provided around the periphery on which the machine career rest, and vessel is sealed by the weight of the career and material, thus making closed circuit. The liquor circulation and flow remains the same as in ordinary cabinet machine.

The dye liquor in these machines moves while the material remains stationary. The flow direction is reversed frequently to ensure level dyeing.

A cabinet dyeing machine consists of following main components,

1.Main dyeing vessel made of SS
2.Carriers for loading of hanks with SS sticks for loading of hanks.

3.An internal axial pump or an external pump for liquor circulation.

4.An indirect heating system(with internal or external heat exchanger)

5.An addition tank with injector pump

6.Preparation tank

7.An internal or external sampling device
8.Color kitchen

Additional Information:

• Delivery Time: 5 week days
• Packaging Details: Packing with normal poly bag .

Precision Engineering and Construction

Designed with high-grade Stainless Steel 316 / 304, the Hank Dyeing Machine ensures unparalleled corrosion resistance and durability. The robust construction, insulated by mineral wool, minimizes heat loss and enhances energy efficiency, making it an ideal long-term investment for textile manufacturers.


Advanced Automation and Safety Controls

The machine comes with fully automatic or semi-automatic operation, featuring a PLC-based control panel for effortless management. Safety is prioritized through high-pressure valves, temperature controllers, and emergency stop switches, ensuring reliable and secure operation during every batch.


Superior Dyeing Performance and Efficiency

Incorporating a high-efficiency liquor circulation system and a variable-speed centrifugal pump, this machine guarantees uniform dyeing with minimal water consumption. The horizontal perforated drum allows seamless loading and unloading, supporting batch capacities from 200 to 500 kg to cater to diverse production needs.
